NTE3220

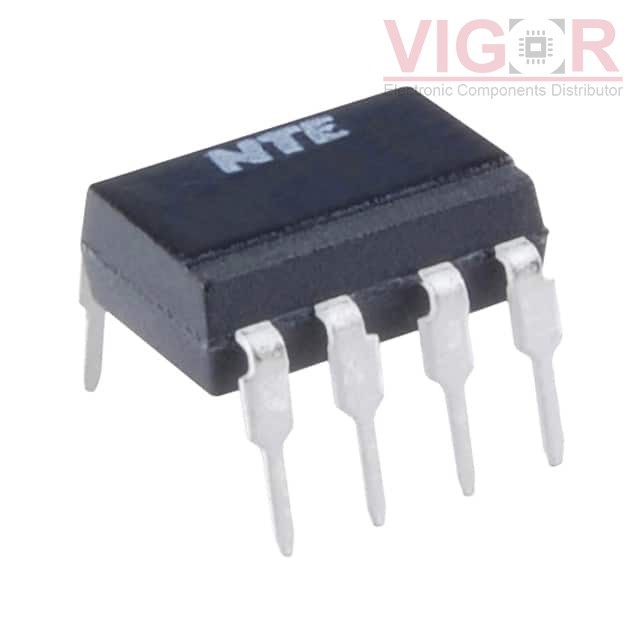

Image is for reference,
please contact us to get the real picture

Part No :: NTE3220

Manufacturer: NTE Electronics, Inc.

Description: OPTOCOUPLER-NPN DUAL TRAN

Catalog: Optoisolators - Transistor, Photovoltaic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: NTE3220 PDF

Availability: 1028 pieces

Unit Price: ~~$1.77000~~

Current price of NTE3220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTE3220 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Number of Channels:	2
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	50% @ 5mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	4µs, 3µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	35V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	200mV
Operating Temperature:	-30°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.300", 7.62mm)
Supplier Device Package:	8-DIP

Please confirm the specifications of the products when ordering.
