OPI120

OPI120

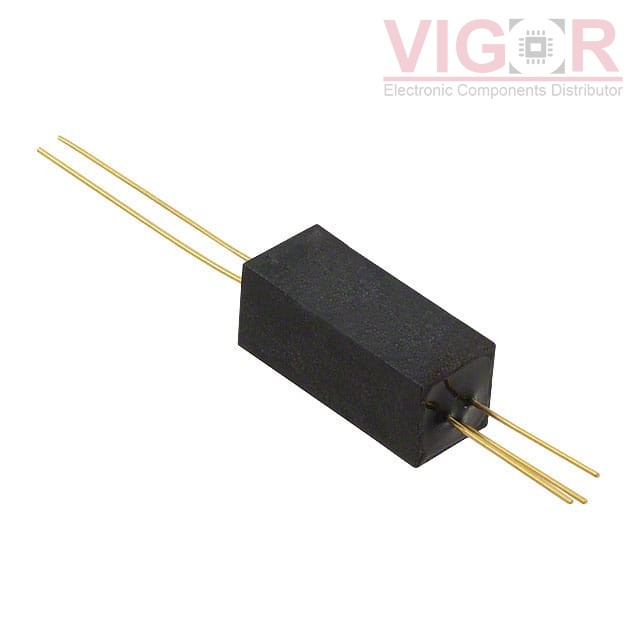

Image is for reference,
please contact us to get the real picture

Part No :

OPI120

Manufacturer
TT Electronics / Optek Technology
Description
OPTOISO 15KV TRANS W/BASE AXIAL
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
OPI120 PDF
Availability
400 pieces
Unit Price
$10.27000

Current price of OPI120 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

OPI120 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Number of Channels:1
Voltage - Isolation:15000VDC
Current Transfer Ratio (Min):20% @ 10mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):2µs, 2µs
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):25V
Current - Output / Channel:-
Voltage - Forward (Vf) (Typ):1.5V (Max)
Current - DC Forward (If) (Max):150 mA
Vce Saturation (Max):500mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Through Hole
Package / Case:Axial - 5 leads
Supplier Device Package:Axial
