LDA100STR

LDA100STR

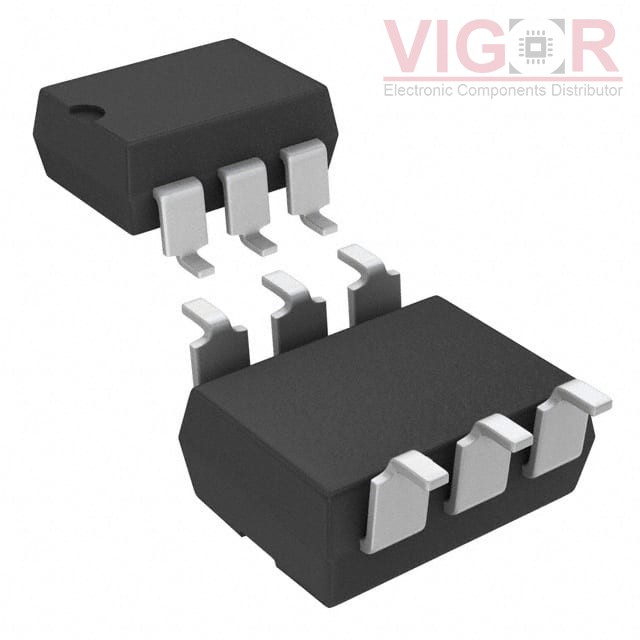

Image is for reference,
please contact us to get the real picture

Part No :

LDA100STR

Manufacturer
Wickmann / Littelfuse
Description
OPTOISO 3.75KV TRANS W/BASE 6SMD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
LDA100STR PDF
Availability
26 pieces
Unit Price
$1.21000

Current price of LDA100STR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LDA100STR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):33% @ 1mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):7µs, 20µs
Rise / Fall Time (Typ):-
Input Type:AC, DC
Output Type:Transistor with Base
Voltage - Output (Max):30V
Current - Output / Channel:-
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):1 mA
Vce Saturation (Max):500mV
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:6-SMD, Gull Wing
Supplier Device Package:6-SMD
