ACPL-227-50CE

ACPL-227-50CE

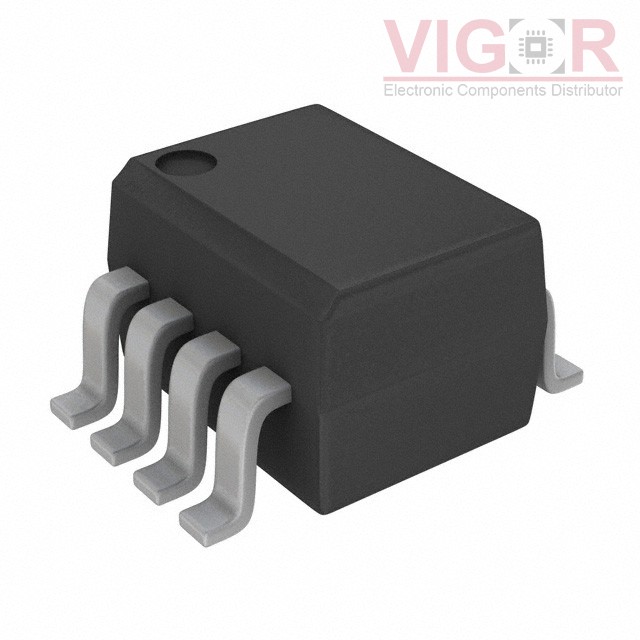

Image is for reference,
please contact us to get the real picture

Part No :

ACPL-227-50CE

Manufacturer
Broadcom
Description
OPTOISOLATOR 3KV 2CH TRANS 8SOIC
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
ACPL-227-50CE PDF
Availability
0 pieces
Unit Price
$0.35100

Current price of ACPL-227-50CE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACPL-227-50CE Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:2
Voltage - Isolation:3000Vrms
Current Transfer Ratio (Min):200% @ 5mA
Current Transfer Ratio (Max):400% @ 5mA
Turn On / Turn Off Time (Typ):3µs, 3µs
Rise / Fall Time (Typ):2µs, 3µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):400mV
Operating Temperature:-55°C ~ 110°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.173", 4.40mm Width)
Supplier Device Package:8-SO
