TLP331(F)

TLP331(F)

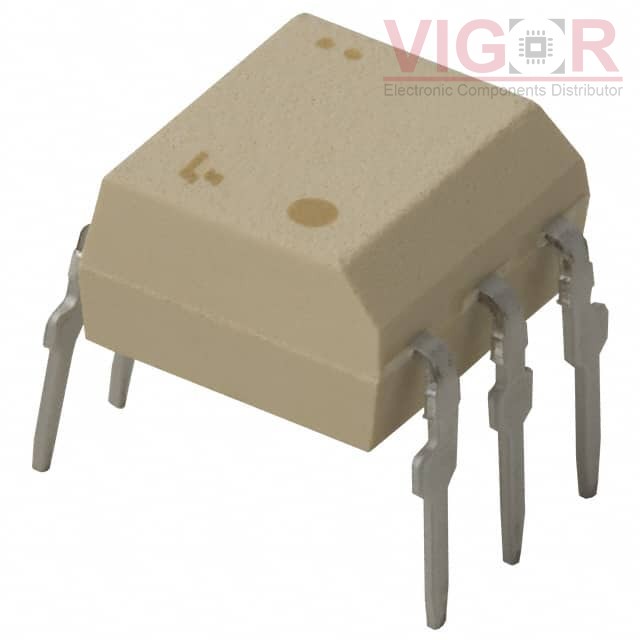

Image is for reference,
please contact us to get the real picture

Part No :

TLP331(F)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
OPTOISO 5KV TRANS W/BASE 6DIP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
TLP331(F) PDF
Availability
25 pieces
Unit Price
$1.42000

Current price of TLP331(F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP331(F) Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):100% @ 1mA
Current Transfer Ratio (Max):1200% @ 1mA
Turn On / Turn Off Time (Typ):10µs, 8µs
Rise / Fall Time (Typ):8µs, 8µs
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):55V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.15V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):400mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Through Hole
Package / Case:6-DIP (0.300", 7.62mm)
Supplier Device Package:6-DIP
