CPC1302GS

CPC1302GS

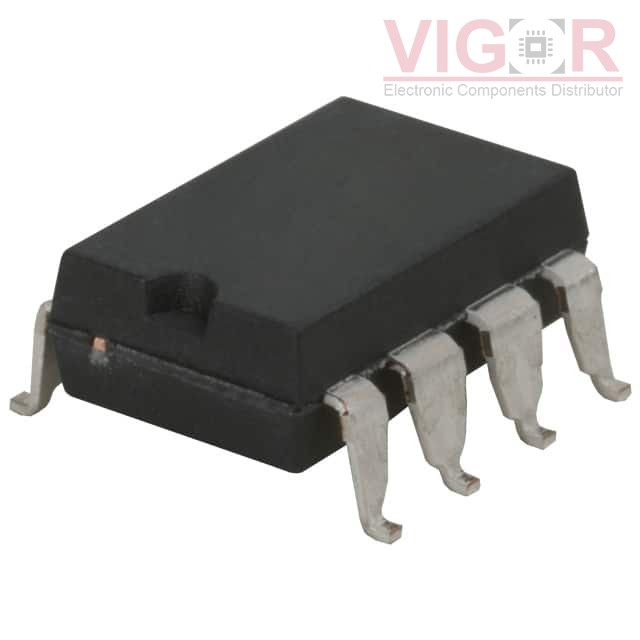

Image is for reference,
please contact us to get the real picture

Part No :

CPC1302GS

Manufacturer
Wickmann / Littelfuse
Description
OPTOISOLTR 3.75KV 2CH DARL 8SMD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
CPC1302GS PDF
Availability
0 pieces
Unit Price
$2.01000

Current price of CPC1302GS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CPC1302GS Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:2
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):1000% @ 1mA
Current Transfer Ratio (Max):8000% @ 1mA
Turn On / Turn Off Time (Typ):5µs, 60µs
Rise / Fall Time (Typ):40µs, 5µs
Input Type:DC
Output Type:Darlington
Voltage - Output (Max):350V
Current - Output / Channel:-
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):1 mA
Vce Saturation (Max):1.2V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:8-SMD, Gull Wing
Supplier Device Package:8-SMD
