ACFL-5211T-060E

ACFL-5211T-060E

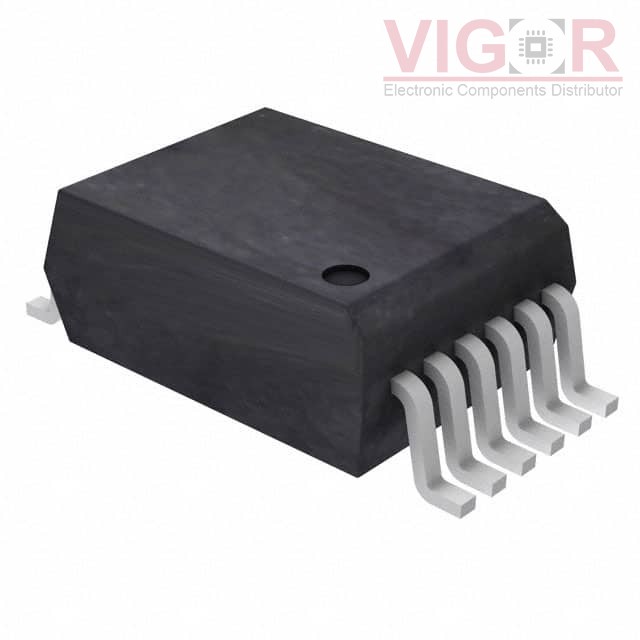

Image is for reference,
please contact us to get the real picture

Part No :

ACFL-5211T-060E

Manufacturer
Broadcom
Description
OPTOISO 5KV 2CH TRANS
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
ACFL-5211T-060E PDF
Availability
0 pieces
Unit Price
$2.59403

Current price of ACFL-5211T-060E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACFL-5211T-060E Specifications
Type Description
Series:Automotive, AEC-Q100, R²Coupler™
Package:Bulk
Part Status:Active
Number of Channels:2
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):32% @ 10mA
Current Transfer Ratio (Max):100% @ 10mA
Turn On / Turn Off Time (Typ):150ns, 500ns
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):20V
Current - Output / Channel:8mA
Voltage - Forward (Vf) (Typ):1.55V
Current - DC Forward (If) (Max):20 mA
Vce Saturation (Max):-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:12-SOIC (0.295", 7.50mm Width)
Supplier Device Package:12-SO
