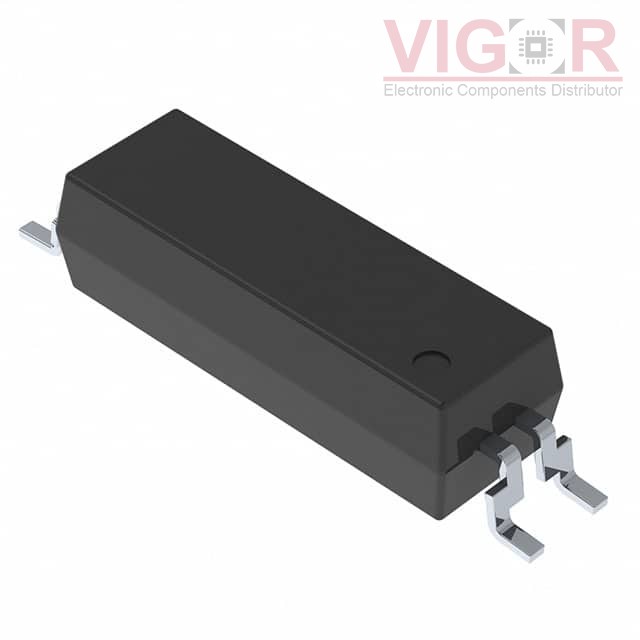

Current price of RV1S2211ACCSP-10YV#SC0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|
Series: | - |
Package: | Strip |
Part Status: | Active |
Number of Channels: | 1 |
Voltage - Isolation: | 5000Vrms |
Current Transfer Ratio (Min): | 100% @ 1mA |
Current Transfer Ratio (Max): | 400% @ 1mA |
Turn On / Turn Off Time (Typ): | - |
Rise / Fall Time (Typ): | 4µs, 5µs |
Input Type: | DC |
Output Type: | Transistor |
Voltage - Output (Max): | 40V |
Current - Output / Channel: | 40mA |
Voltage - Forward (Vf) (Typ): | 1.15V |
Current - DC Forward (If) (Max): | 30 mA |
Vce Saturation (Max): | 300mV |
Operating Temperature: | -40°C ~ 115°C |
Mounting Type: | Surface Mount |
Package / Case: | 4-SOP (0.295", 7.50mm Width) |
Supplier Device Package: | 4-LSSOP |
