SFH6345-X001

SFH6345-X001

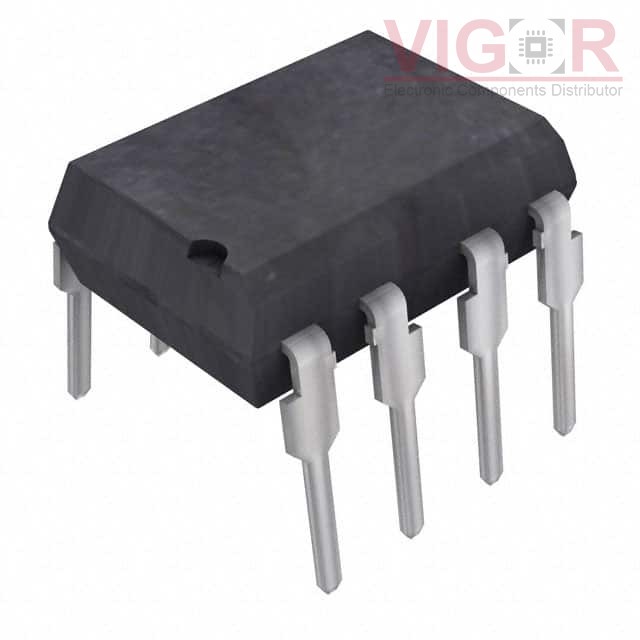

Image is for reference,
please contact us to get the real picture

Part No :

SFH6345-X001

Manufacturer
Vishay / Semiconductor - Opto Division
Description
OPTOISOLATOR 5.3KV TRANS 8DIP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
SFH6345-X001 PDF
Availability
0 pieces
Unit Price
$1.82000

Current price of SFH6345-X001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SFH6345-X001 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:1
Voltage - Isolation:5300Vrms
Current Transfer Ratio (Min):19% @ 16mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):300ns, 300ns
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):25V
Current - Output / Channel:8mA
Voltage - Forward (Vf) (Typ):1.33V
Current - DC Forward (If) (Max):25 mA
Vce Saturation (Max):400mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-DIP
