TLP2309(E)

Image is for reference,
please contact us to get the real picture

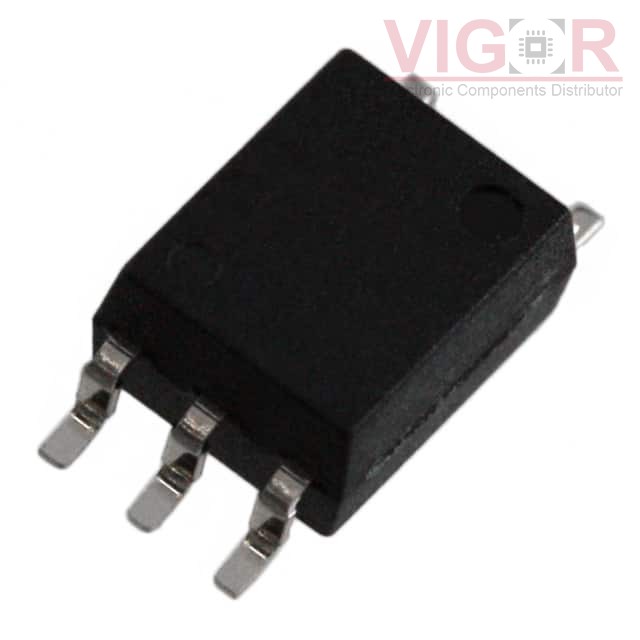

Part No :: TLP2309(E)

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: OPTOISO 3.75KV TRANS 6-SO 5 LEAD

Catalog: Optoisolators - Transistor, Photovoltaic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: TLP2309(E) PDF

Availability: 414 pieces

Unit Price: ~~$1.17000~~

Current price of TLP2309(E) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP2309(E) Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	15% @ 16mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	1µs, 1µs (Max)
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	20V
Current - Output / Channel:	8mA
Voltage - Forward (Vf) (Typ):	1.55V
Current - DC Forward (If) (Max):	25 mA
Vce Saturation (Max):	-
Operating Temperature:	-40°C ~ 110°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.179", 4.55mm Width), 5 Leads
Supplier Device Package:	6-SO, 5 Lead
