4N49

4N49

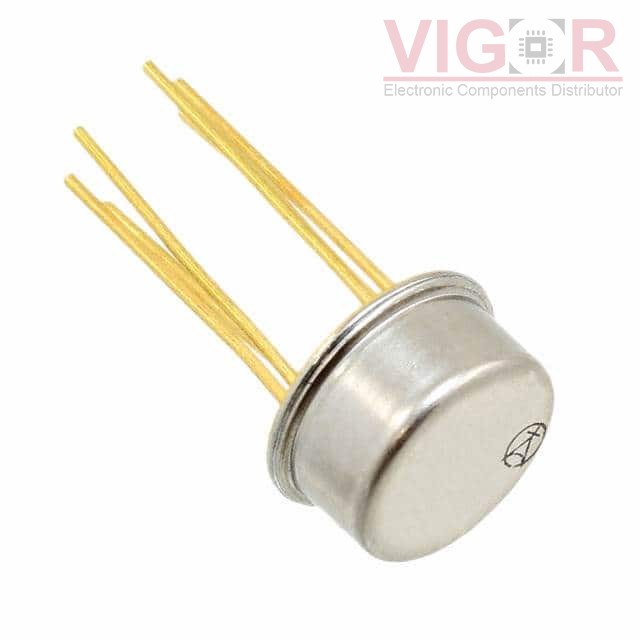

Image is for reference,
please contact us to get the real picture

Part No :

4N49

Manufacturer
TT Electronics / Optek Technology
Description
OPTOISO 1KV TRANS W/BASE TO78-6
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
4N49 PDF
Availability
0 pieces
Unit Price
$29.54600

Current price of 4N49 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

4N49 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Number of Channels:1
Voltage - Isolation:1000VDC
Current Transfer Ratio (Min):200% @ 1mA
Current Transfer Ratio (Max):1000% @ 1mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):25µs, 25µs
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):40V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.5V (Max)
Current - DC Forward (If) (Max):40 mA
Vce Saturation (Max):300mV
Operating Temperature:-55°C ~ 125°C
Mounting Type:Through Hole
Package / Case:TO-78-6 Metal Can
Supplier Device Package:TO-78-6
