ACNT-H50L-500E

ACNT-H50L-500E

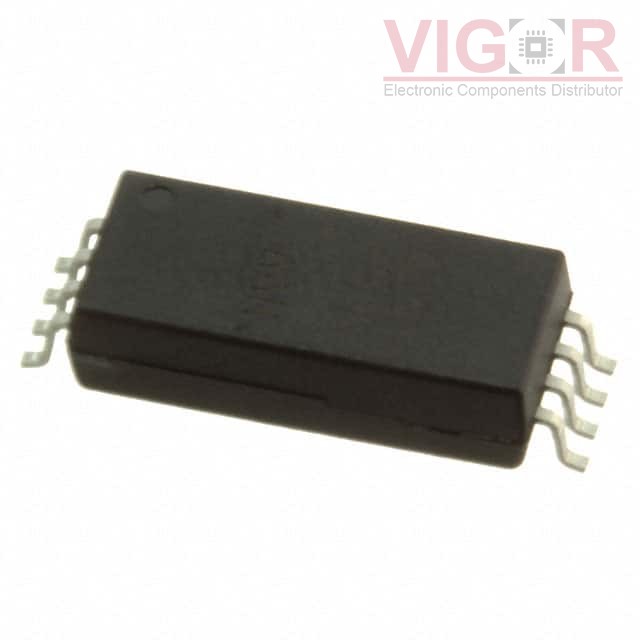

Image is for reference,
please contact us to get the real picture

Part No :

ACNT-H50L-500E

Manufacturer
Broadcom
Description
OPTOISO 7.5KV TRANSISTOR 8SO
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
ACNT-H50L-500E PDF
Availability
0 pieces
Unit Price
$4.79000

Current price of ACNT-H50L-500E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACNT-H50L-500E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Channels:1
Voltage - Isolation:7500Vrms
Current Transfer Ratio (Min):31% @ 12mA
Current Transfer Ratio (Max):80% @ 12mA
Turn On / Turn Off Time (Typ):800ns, 1µs
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):24V
Current - Output / Channel:8mA
Voltage - Forward (Vf) (Typ):1.45V
Current - DC Forward (If) (Max):20 mA
Vce Saturation (Max):-
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.535", 13.60mm Width)
Supplier Device Package:8-SO Stretched
