EL851(S1)(TU)

EL851(S1)(TU)

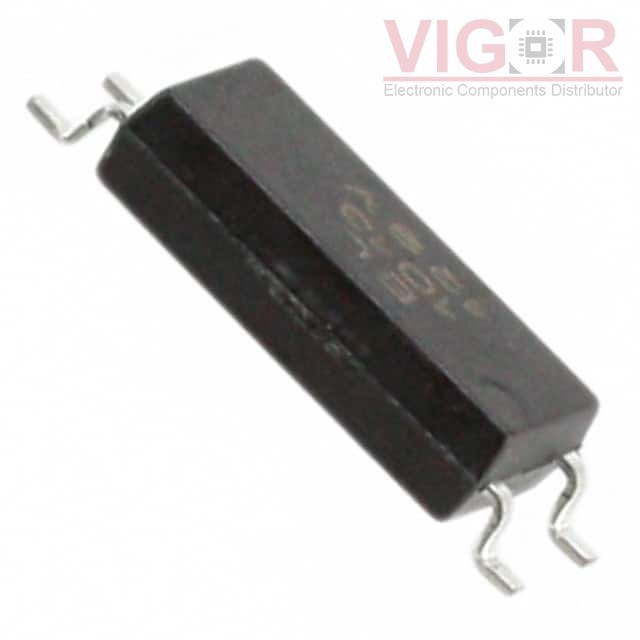

Image is for reference,
please contact us to get the real picture

Part No :

EL851(S1)(TU)

Manufacturer
Everlight Electronics
Description
OPTOISO 5KV TRANSISTOR 4-SMD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Aug 17 - Aug 21 2025
DataSheet
EL851(S1)(TU) PDF
Availability
0 pieces
Unit Price
$0.17331

Current price of EL851(S1)(TU) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EL851(S1)(TU) Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):50% @ 5mA
Current Transfer Ratio (Max):600% @ 5mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):4µs, 5µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):350V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):60 mA
Vce Saturation (Max):400mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SMD
