LTV-815S-TA1

LTV-815S-TA1

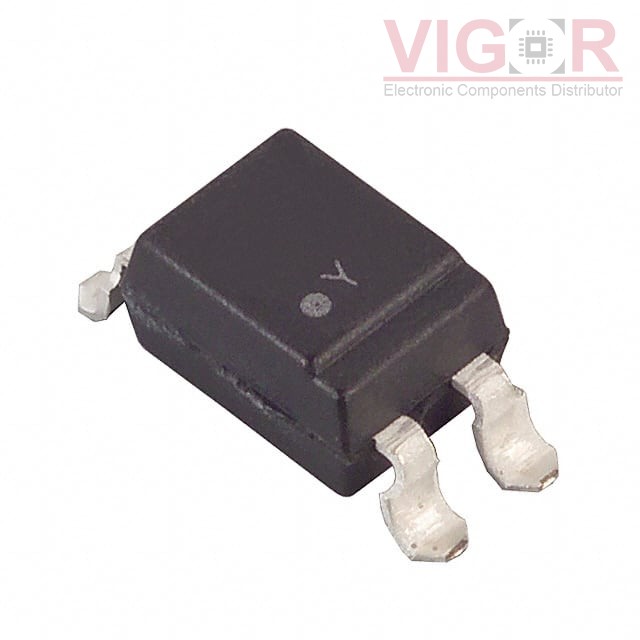

Image is for reference,
please contact us to get the real picture

Part No :

LTV-815S-TA1

Manufacturer
Lite-On, Inc.
Description
OPTOISOLTR 5KV DARLINGTON 4-SMD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
LTV-815S-TA1 PDF
Availability
0 pieces
Unit Price
$0.13500

Current price of LTV-815S-TA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LTV-815S-TA1 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):600% @ 1mA
Current Transfer Ratio (Max):7500% @ 1mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):60µs, 53µs
Input Type:DC
Output Type:Darlington
Voltage - Output (Max):35V
Current - Output / Channel:80mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):1V
Operating Temperature:-30°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SMD
