TCLT1101

TCLT1101

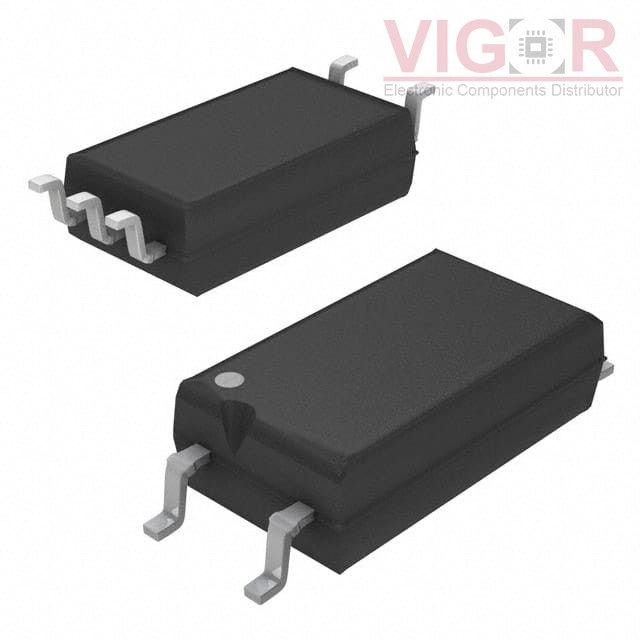

Image is for reference,
please contact us to get the real picture

Part No :

TCLT1101

Manufacturer
Vishay / Semiconductor - Opto Division
Description
OPTOISO 5KV TRANS W/BASE SO6L
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
TCLT1101 PDF
Availability
0 pieces
Unit Price
$0.24882

Current price of TCLT1101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TCLT1101 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):40% @ 10mA
Current Transfer Ratio (Max):80% @ 10mA
Turn On / Turn Off Time (Typ):6µs, 5µs
Rise / Fall Time (Typ):3µs, 4.7µs
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):70V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.25V
Current - DC Forward (If) (Max):60 mA
Vce Saturation (Max):300mV
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.295", 7.50mm Width), 5 Leads
Supplier Device Package:6-SOP, 5 Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 4N33M

4N33M

OPTOISO 4.17KV DARL W/BASE 6DIP

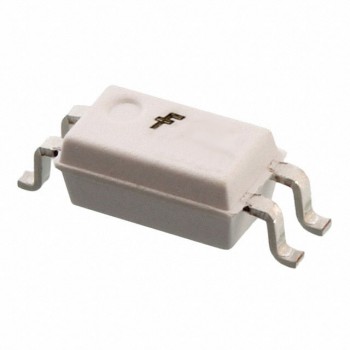

HOT HMHAA280R2V
