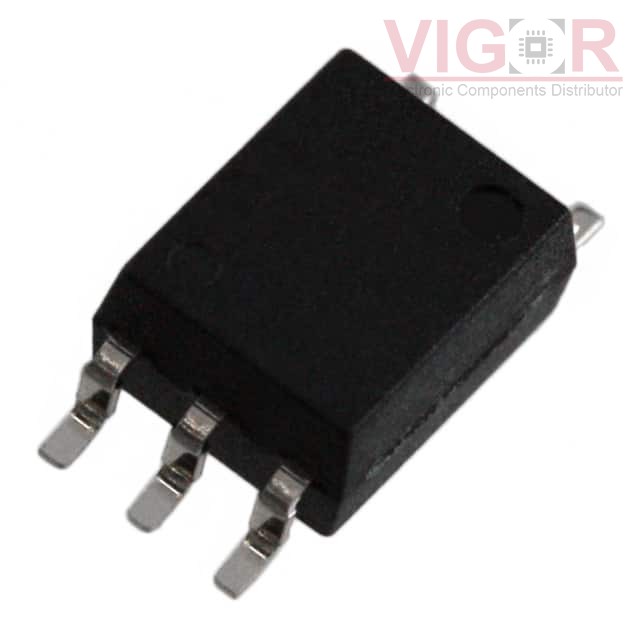

Image is for reference,
please contact us to get the real picture

Part No :

TLP109(E

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
OPTOISO 3.75KV TRANS 6-SO 5 LEAD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
TLP109(E PDF
Availability
335 pieces
Unit Price
$1.34000

Current price of TLP109(E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP109(E Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):20% @ 16mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):800ns, 800ns (Max)
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):20V
Current - Output / Channel:8mA
Voltage - Forward (Vf) (Typ):1.64V
Current - DC Forward (If) (Max):20 mA
Vce Saturation (Max):-
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.179", 4.55mm Width), 5 Leads
Supplier Device Package:6-SO, 5 Lead
