PS2502-4-A

PS2502-4-A

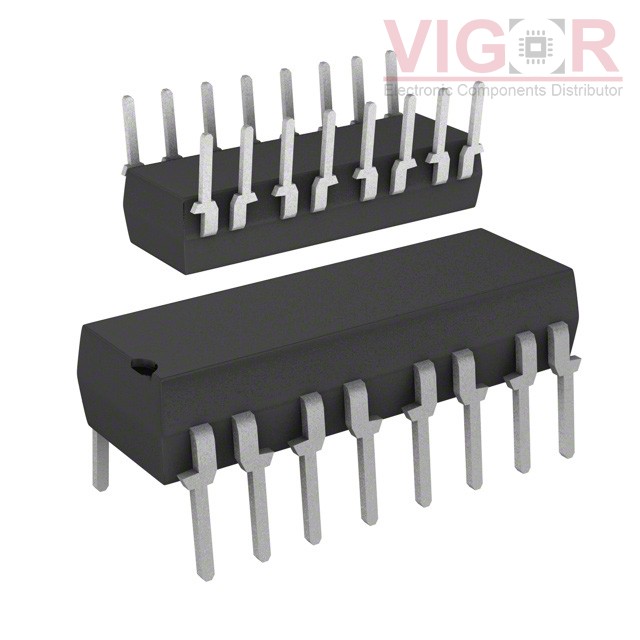

Image is for reference,
please contact us to get the real picture

Part No :

PS2502-4-A

Manufacturer
Renesas Electronics America
Description
OPTOISO 5KV 4CH DARLINGTON 16DIP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
PS2502-4-A PDF
Availability
15118 pieces
Unit Price
$3.62000

Current price of PS2502-4-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PS2502-4-A Specifications
Type Description
Series:NEPOC
Package:Tube
Part Status:Active
Number of Channels:4
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):200% @ 1mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):100µs, 100µs
Input Type:DC
Output Type:Darlington
Voltage - Output (Max):40V
Current - Output / Channel:160mA
Voltage - Forward (Vf) (Typ):1.17V
Current - DC Forward (If) (Max):80 mA
Vce Saturation (Max):1V
Operating Temperature:-55°C ~ 100°C
Mounting Type:Through Hole
Package / Case:16-DIP (0.300", 7.62mm)
Supplier Device Package:16-DIP
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT TLP293-4(V4,E

TLP293-4(V4,E

OPTOISOLATOR 3.75KV TRANS SO16

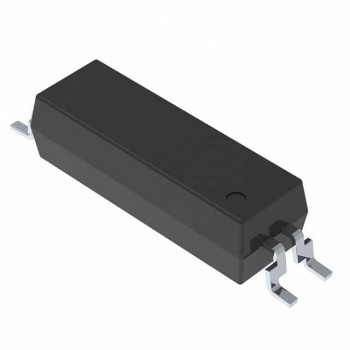

HOT RV1S2285ACCSP-10YV#SC0
