TCLT1106

TCLT1106

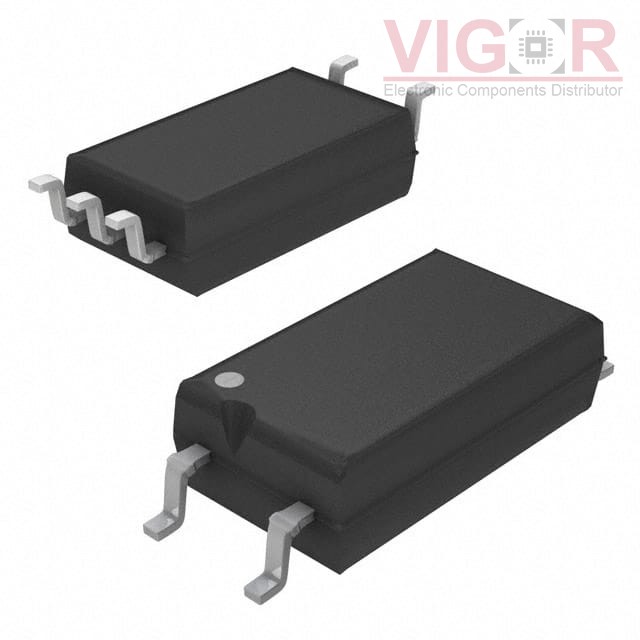

Image is for reference,
please contact us to get the real picture

Part No :

TCLT1106

Manufacturer
Vishay / Semiconductor - Opto Division
Description
OPTOISO 5KV TRANS W/BASE 6SOP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
TCLT1106 PDF
Availability
5900 pieces
Unit Price
$0.64000

Current price of TCLT1106 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TCLT1106 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):100% @ 5mA
Current Transfer Ratio (Max):300% @ 5mA
Turn On / Turn Off Time (Typ):6µs, 5µs
Rise / Fall Time (Typ):3µs, 4.7µs
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):80V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.25V
Current - DC Forward (If) (Max):60 mA
Vce Saturation (Max):300mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package:6-SOP, 5 Pin
