HCPL-M701-500E

HCPL-M701-500E

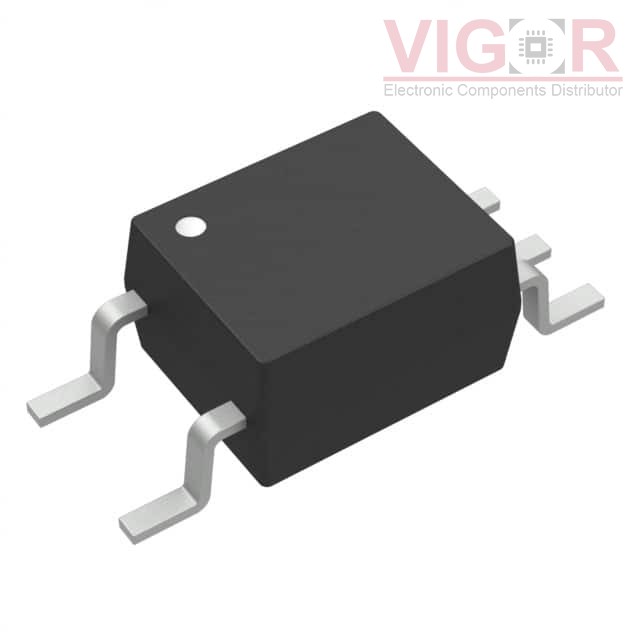

Image is for reference,
please contact us to get the real picture

Part No :

HCPL-M701-500E

Manufacturer
Broadcom
Description
OPTOISO 3.75KV DARLINGTON 6SOIC
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
HCPL-M701-500E PDF
Availability
0 pieces
Unit Price
$1.26776

Current price of HCPL-M701-500E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL-M701-500E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):500% @ 1.6mA
Current Transfer Ratio (Max):2600% @ 1.6mA
Turn On / Turn Off Time (Typ):500ns, 1µs
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Darlington
Voltage - Output (Max):18V
Current - Output / Channel:60mA
Voltage - Forward (Vf) (Typ):1.4V
Current - DC Forward (If) (Max):20 mA
Vce Saturation (Max):-
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package:5-SO
