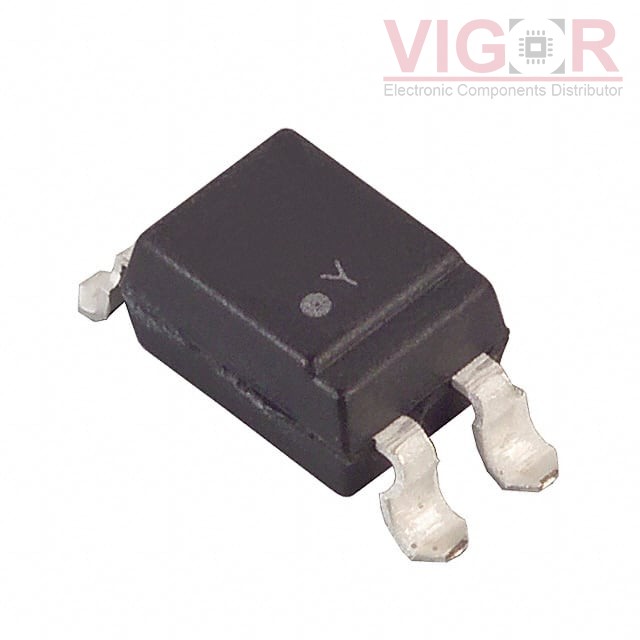

LTV-815S

Image is for reference,
please contact us to get the real picture

Part No :: LTV-815S

Manufacturer: Lite-On, Inc.

Description: OPTOISOLTR 5KV DARLINGTON 4-SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: LTV-815S PDF

Availability: 7160 pieces

Unit Price: ~~$0.54000~~

Current price of LTV-815S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LTV-815S Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	600% @ 1mA
Current Transfer Ratio (Max):	7500% @ 1mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	60µs, 53µs
Input Type:	DC
Output Type:	Darlington
Voltage - Output (Max):	35V
Current - Output / Channel:	80mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	1V
Operating Temperature:	-30°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-SMD

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
