ACPL-K49T-000E

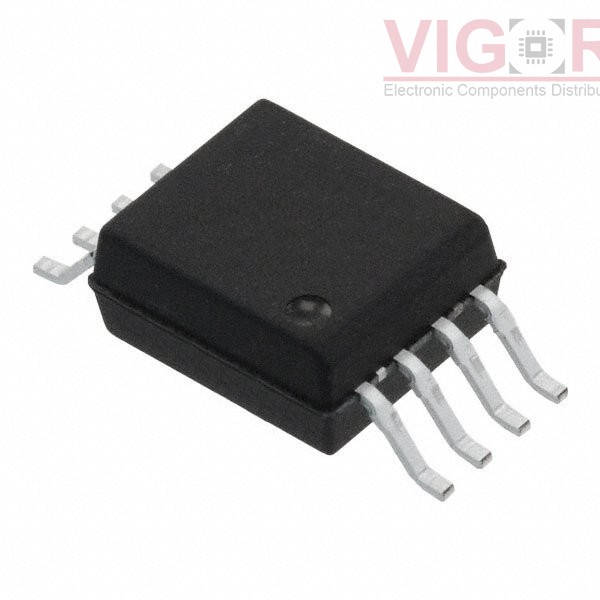

Image is for reference,
please contact us to get the real picture

Part No :: ACPL-K49T-000E

Manufacturer: Broadcom

Description: OPTOISOLATOR 5KV TRANSISTOR

Catalog: Optoisolators - Transistor, Photovoltaic Output

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: ACPL-K49T-000E PDF

Availability: 0 pieces

Unit Price: ~~$3.62000~~

Current price of ACPL-K49T-000E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACPL-K49T-000E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	32% @ 10mA
Current Transfer Ratio (Max):	100% @ 10mA
Turn On / Turn Off Time (Typ):	20µs, 20µs (Max)
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	20V
Current - Output / Channel:	8mA
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	20 mA
Vce Saturation (Max):	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.268", 6.81mm Width)
Supplier Device Package:	8-SO

Please confirm the specifications of the products when ordering.
