TLP290(BL-TP,SE

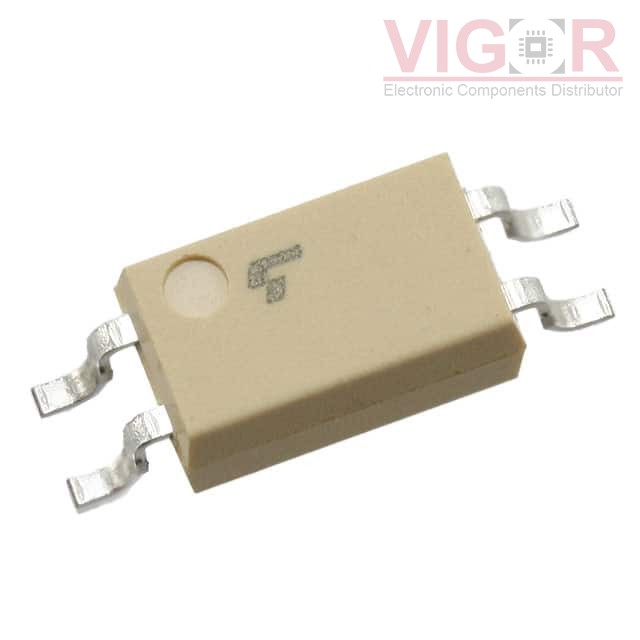

Image is for reference,
please contact us to get the real picture

Part No :: TLP290(BL-TP,SE

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: OPTOISOLATOR 3.75KV TRANS 4-SO

Catalog: Optoisolators - Transistor, Photovoltaic Output

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: TLP290(BL-TP,SE PDF

Availability: 0 pieces

Unit Price: ~~$0.43000~~

Current price of TLP290(BL-TP,SE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP290(BL-TP,SE Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	200% @ 5mA
Current Transfer Ratio (Max):	600% @ 5mA
Turn On / Turn Off Time (Typ):	3µs, 3µs
Rise / Fall Time (Typ):	2µs, 3µs
Input Type:	AC, DC
Output Type:	Transistor
Voltage - Output (Max):	80V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.25V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 110°C
Mounting Type:	Surface Mount
Package / Case:	4-SOIC (0.179", 4.55mm Width)
Supplier Device Package:	4-SO

Please confirm the specifications of the products when ordering.
