NTE3042

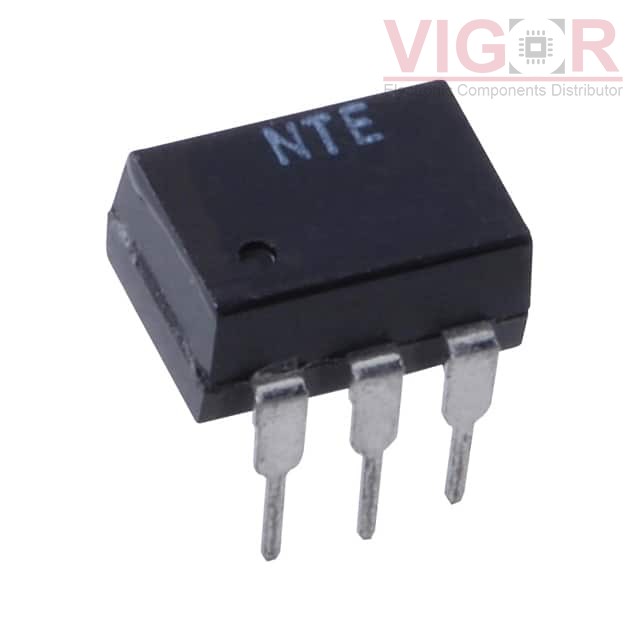

Image is for reference,
please contact us to get the real picture

Part No :: NTE3042

Manufacturer: NTE Electronics, Inc.

Description: OPTOISOLATOR/TRANS

Catalog: Optoisolators - Transistor, Photovoltaic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: NTE3042 PDF

Availability: 108 pieces

Unit Price: ~~$1.73000~~

Current price of NTE3042 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTE3042 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	7500VAC
Current Transfer Ratio (Min):	20% @ 10mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	1.2µs, 1.2µs
Rise / Fall Time (Typ):	100ns, 100ns
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	30V
Current - Output / Channel:	-
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	400mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	6-DIP (0.300", 7.62mm)
Supplier Device Package:	6-DIP
