HCPL-M701

HCPL-M701

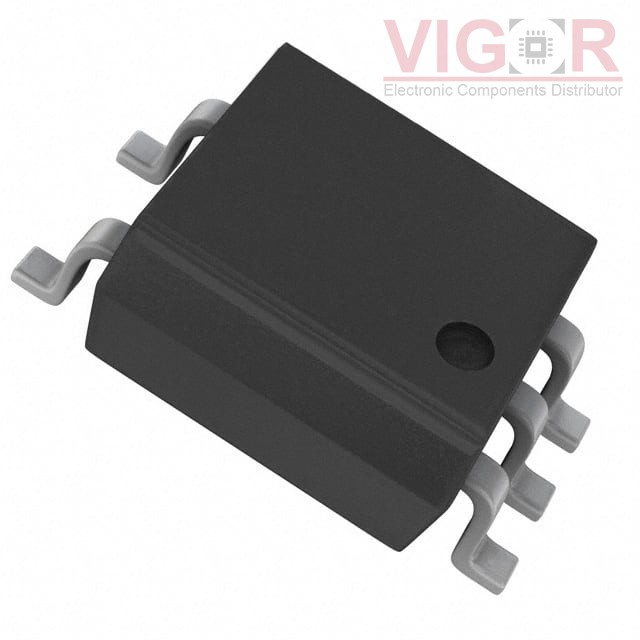

Image is for reference,
please contact us to get the real picture

Part No :

HCPL-M701

Manufacturer
Broadcom
Description
OPTOISO 3.75KV DARLINGTON 6SOIC
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
HCPL-M701 PDF
Availability
0 pieces
Unit Price
$1.36502

Current price of HCPL-M701 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL-M701 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):500% @ 1.6mA
Current Transfer Ratio (Max):3500% @ 500µA
Turn On / Turn Off Time (Typ):500ns, 1µs
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Darlington
Voltage - Output (Max):18V
Current - Output / Channel:60mA
Voltage - Forward (Vf) (Typ):1.4V
Current - DC Forward (If) (Max):20 mA
Vce Saturation (Max):-
Operating Temperature:0°C ~ 70°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package:-
