TLP2301(TPL,E

TLP2301(TPL,E

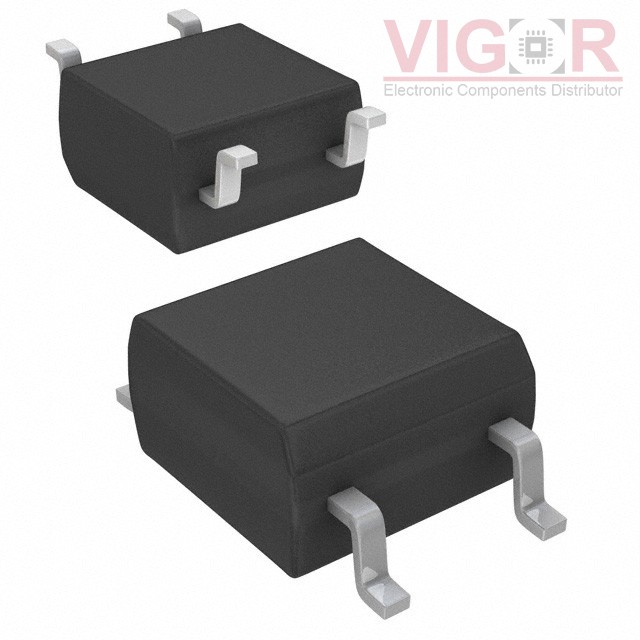

Image is for reference,
please contact us to get the real picture

Part No :

TLP2301(TPL,E

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
OPTOISO 3.75KV TRANS 6-SO 4 LEAD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
TLP2301(TPL,E PDF
Availability
3088 pieces
Unit Price
$0.63000

Current price of TLP2301(TPL,E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP2301(TPL,E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):50% @ 1mA
Current Transfer Ratio (Max):600% @ 1mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):40V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.25V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):300mV
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package:6-SO, 4 Lead
