TLX9300(TPL,F

TLX9300(TPL,F

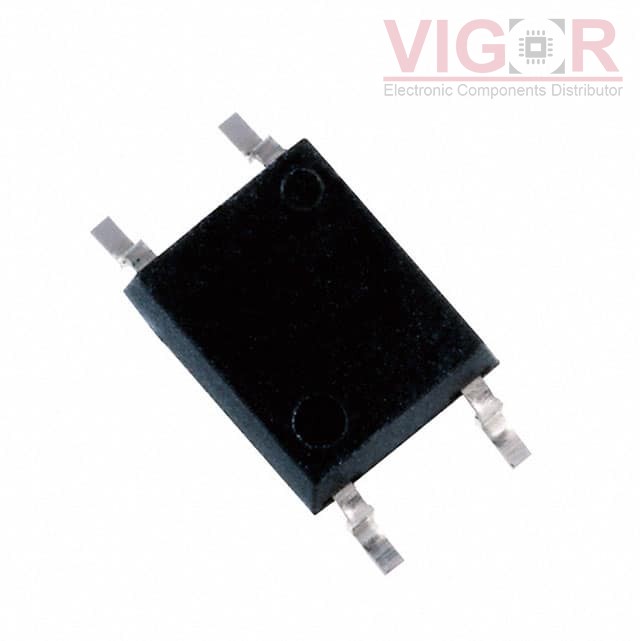

Image is for reference,
please contact us to get the real picture

Part No :

TLX9300(TPL,F

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
TR COUPLER; 4-PIN SO6; AECQ; ROH
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
TLX9300(TPL,F PDF
Availability
2731 pieces
Unit Price
$2.89000

Current price of TLX9300(TPL,F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLX9300(TPL,F Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):100% @ 5mA
Current Transfer Ratio (Max):900% @ 5mA
Turn On / Turn Off Time (Typ):15µs, 50µs
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):40V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.25V
Current - DC Forward (If) (Max):30 mA
Vce Saturation (Max):400mV
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package:6-SO, 4 Lead
