140100146000

140100146000

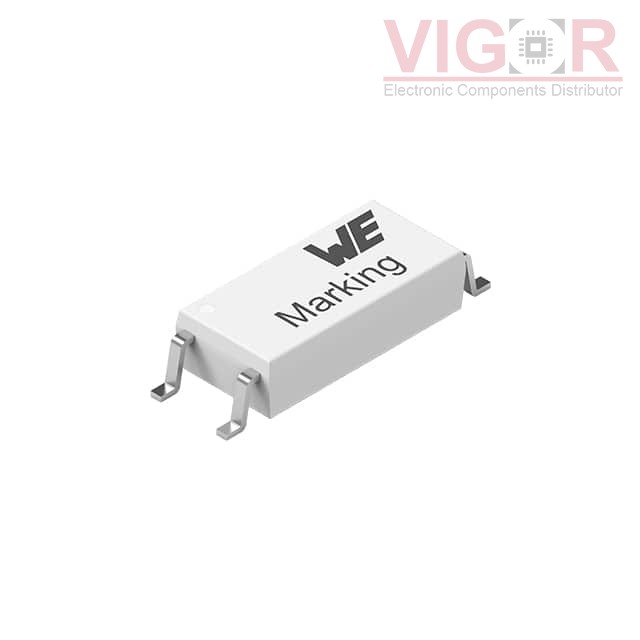

Image is for reference,
please contact us to get the real picture

Part No :

140100146000

Manufacturer
Würth Elektronik Midcom
Description
WL-OCPT OPTOCOUPLER PHOTOTRANSIS
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
140100146000 PDF
Availability
2468 pieces
Unit Price
$0.27000

Current price of 140100146000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

140100146000 Specifications
Type Description
Series:WL-OCPT
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):300% @ 5mA
Current Transfer Ratio (Max):600% @ 5mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):5µs, 6µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.24V
Current - DC Forward (If) (Max):60 mA
Vce Saturation (Max):300mV
Operating Temperature:-55°C ~ 110°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-LSOP
