SFH6156-3TX001

Image is for reference,
please contact us to get the real picture

Part No :: SFH6156-3TX001

Manufacturer: Vishay / Semiconductor - Opto Division

Description: OPTOISOLATOR 5.3KV TRANS 4SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: SFH6156-3TX001 PDF

Availability: 274 pieces

Unit Price: ~~$0.85000~~

Current price of SFH6156-3TX001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SFH6156-3TX001 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	5300Vrms
Current Transfer Ratio (Min):	100% @ 10mA
Current Transfer Ratio (Max):	200% @ 10mA
Turn On / Turn Off Time (Typ):	3µs, 2.3µs
Rise / Fall Time (Typ):	2µs, 2µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	70V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.25V
Current - DC Forward (If) (Max):	60 mA
Vce Saturation (Max):	400mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-SMD

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

TCET4100

OPTOISOLTR 5KV 4CH TRANS 16-DIP

HOT

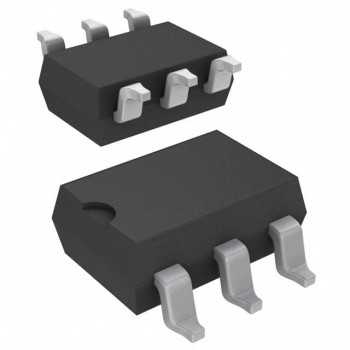

SFH601-3X009

OPTOISO 5.3KV TRANS W/BASE 6SMD

HOT

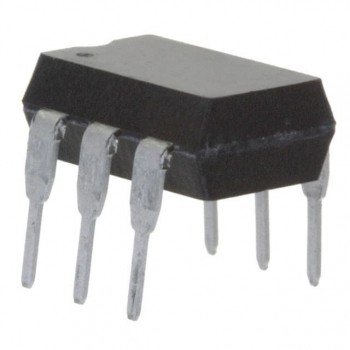

4N27-X000
