140816140310

140816140310

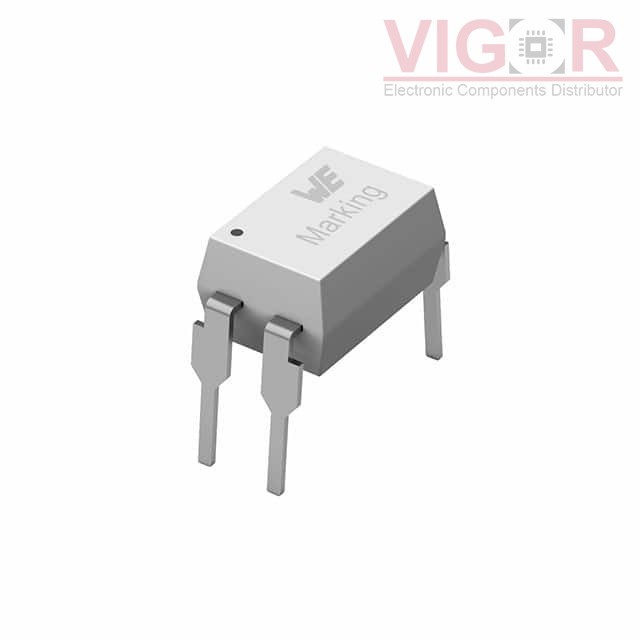

Image is for reference,
please contact us to get the real picture

Part No :

140816140310

Manufacturer
Würth Elektronik Midcom
Description
WL-OCPT OPTOCOUPLER PHOTOTRANSIS
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
140816140310 PDF
Availability
51 pieces
Unit Price
$0.36000

Current price of 140816140310 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

140816140310 Specifications
Type Description
Series:WL-OCPT
Package:Tube
Part Status:Active
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):200% @ 5mA
Current Transfer Ratio (Max):400% @ 5mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):3µs, 4µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.24V
Current - DC Forward (If) (Max):60 mA
Vce Saturation (Max):-
Operating Temperature:-55°C ~ 110°C
Mounting Type:Through Hole
Package / Case:4-DIP (0.300", 7.62mm)
Supplier Device Package:4-DIP
