VOL617A-3X001T

VOL617A-3X001T

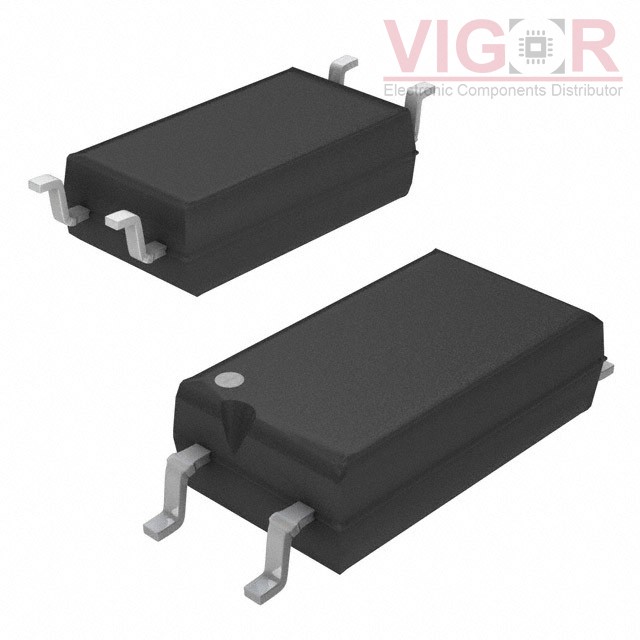

Image is for reference,
please contact us to get the real picture

Part No :

VOL617A-3X001T

Manufacturer
Vishay / Semiconductor - Opto Division
Description
OPTOISOLATOR 5KV TRANS 4-LSOP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
VOL617A-3X001T PDF
Availability
54100 pieces
Unit Price
$0.65000

Current price of VOL617A-3X001T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VOL617A-3X001T Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):100% @ 5mA
Current Transfer Ratio (Max):200% @ 5mA
Turn On / Turn Off Time (Typ):6µs, 5.5µs
Rise / Fall Time (Typ):3.5µs, 5µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.16V
Current - DC Forward (If) (Max):60 mA
Vce Saturation (Max):400mV
Operating Temperature:-55°C ~ 110°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-LSOP (2.54mm)
