TLP385(D4YH-TR,E

TLP385(D4YH-TR,E

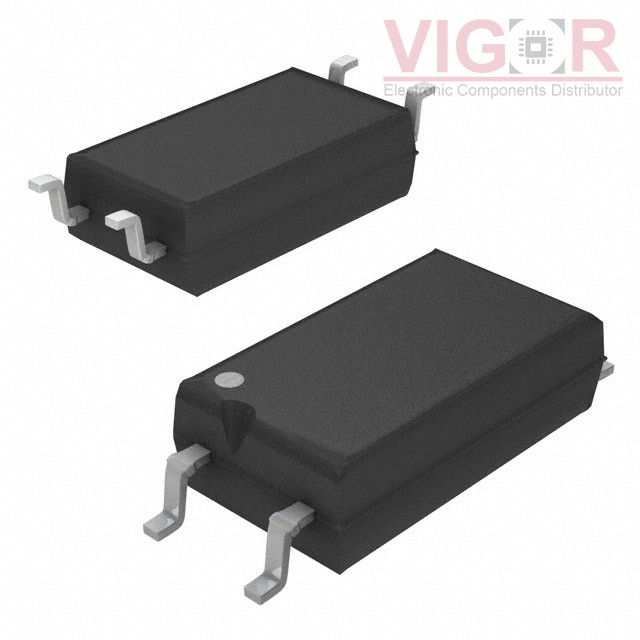

Image is for reference,
please contact us to get the real picture

Part No :

TLP385(D4YH-TR,E

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
TRANSISTOR OPTOCOUPLER; 4-PIN SO
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
TLP385(D4YH-TR,E PDF
Availability
0 pieces
Unit Price
$0.15741

Current price of TLP385(D4YH-TR,E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP385(D4YH-TR,E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):75% @ 5mA
Current Transfer Ratio (Max):150% @ 5mA
Turn On / Turn Off Time (Typ):3µs, 3µs
Rise / Fall Time (Typ):2µs, 3µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.25V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):300mV
Operating Temperature:-55°C ~ 110°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.295", 7.50mm Width), 4 Leads
Supplier Device Package:6-SO, 4 Lead
