ILQ2-X017

ILQ2-X017

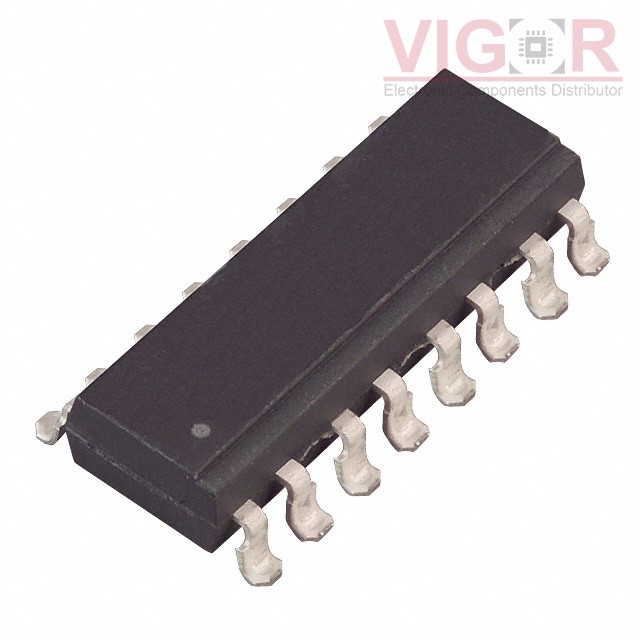

Image is for reference,
please contact us to get the real picture

Part No :

ILQ2-X017

Manufacturer
Vishay / Semiconductor - Opto Division
Description
OPTOISO 5.3KV 4CH TRANS 16SMD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
ILQ2-X017 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of ILQ2-X017 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ILQ2-X017 Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Number of Channels:4
Voltage - Isolation:5300Vrms
Current Transfer Ratio (Min):100% @ 10mA
Current Transfer Ratio (Max):500% @ 10mA
Turn On / Turn Off Time (Typ):1.2µs, 2.3µs
Rise / Fall Time (Typ):2.6µs, 2.2µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):70V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.25V
Current - DC Forward (If) (Max):60 mA
Vce Saturation (Max):400mV
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:16-SMD, Gull Wing
Supplier Device Package:16-SMD
