PS2702-1-A

PS2702-1-A

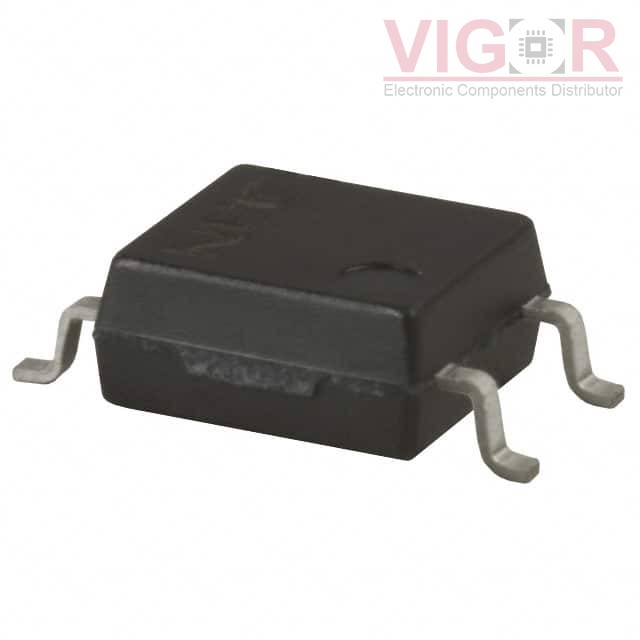

Image is for reference,
please contact us to get the real picture

Part No :

PS2702-1-A

Manufacturer
CEL (California Eastern Laboratories)
Description
OPTOISOLATOR 3.75KV DARL 4SMD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
PS2702-1-A PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PS2702-1-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PS2702-1-A Specifications
Type Description
Series:NEPOC
Package:Tube
Part Status:Discontinued at Digi-Key
Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):200% @ 1mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):200µs, 200µs
Input Type:DC
Output Type:Darlington
Voltage - Output (Max):40V
Current - Output / Channel:200mA
Voltage - Forward (Vf) (Typ):1.1V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):1V
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SOP
