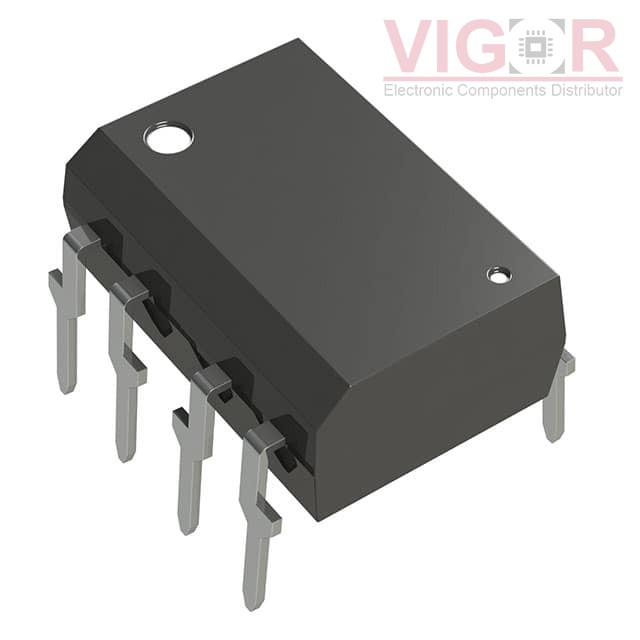

TLP504A(F)

TLP504A(F)

Image is for reference,
please contact us to get the real picture

Part No :

TLP504A(F)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
OPTOISOLTR 2.5KV 2CH TRANS 8-DIP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
TLP504A(F) PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TLP504A(F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP504A(F) Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Number of Channels:2
Voltage - Isolation:2500Vrms
Current Transfer Ratio (Min):50% @ 5mA
Current Transfer Ratio (Max):600% @ 5mA
Turn On / Turn Off Time (Typ):3µs, 3µs
Rise / Fall Time (Typ):2µs, 3µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):55V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.15V
Current - DC Forward (If) (Max):60 mA
Vce Saturation (Max):400mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-DIP
