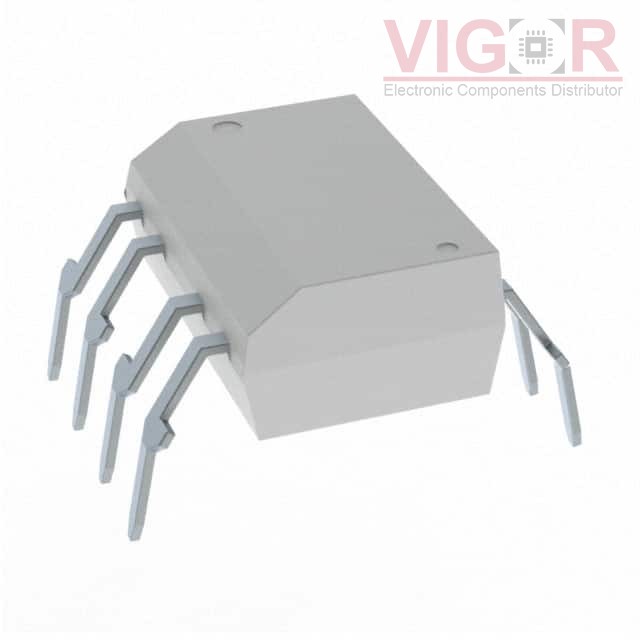

TLP751(D4-LF2,F)

Image is for reference,
please contact us to get the real picture

Part No :: TLP751(D4-LF2,F)

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: OPTOCOUPLER TRANS

Catalog: Optoisolators - Transistor, Photovoltaic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 17 - Jul 21 2025

DataSheet: TLP751(D4-LF2,F) PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of TLP751(D4-LF2,F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP751(D4-LF2,F) Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	10% @ 16mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	200ns, 1µs
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	15V
Current - Output / Channel:	8mA
Voltage - Forward (Vf) (Typ):	1.65V
Current - DC Forward (If) (Max):	25 mA
Vce Saturation (Max):	-
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.400", 10.16mm)
Supplier Device Package:	8-DIP
