OPIA403BTR

OPIA403BTR

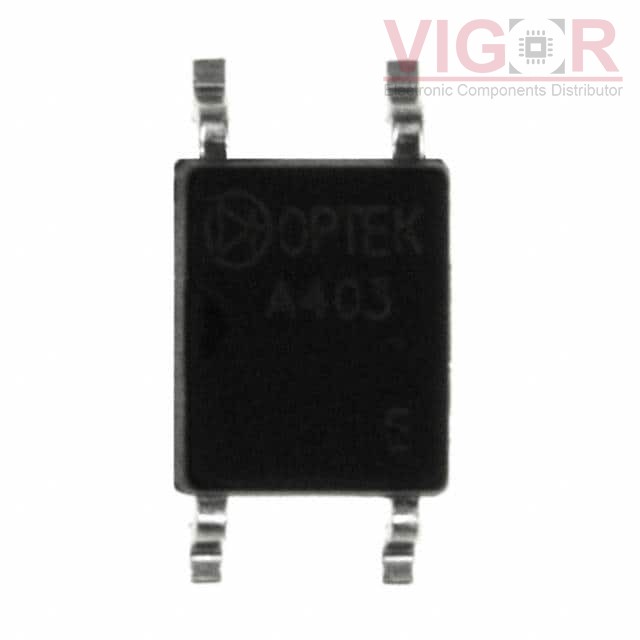

Image is for reference,
please contact us to get the real picture

Part No :

OPIA403BTR

Manufacturer
TT Electronics / Optek Technology
Description
OPTOISO 3.75KV DARLINGTON 4SOP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
OPIA403BTR PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of OPIA403BTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

OPIA403BTR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):600% @ 1mA
Current Transfer Ratio (Max):7500% @ 1mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):60µs, 53µs
Input Type:DC
Output Type:Darlington
Voltage - Output (Max):35V
Current - Output / Channel:150mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):1V
Operating Temperature:-30°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SOP (2.54mm)
