TLP626(TP1,F)

TLP626(TP1,F)

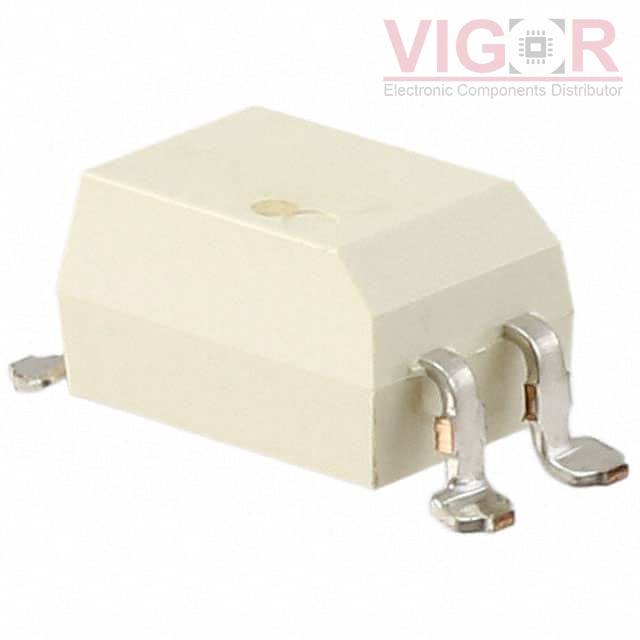

Image is for reference,
please contact us to get the real picture

Part No :

TLP626(TP1,F)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
OPTOISOLATR 5KV TRANSISTOR 4-SMD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
TLP626(TP1,F) PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TLP626(TP1,F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP626(TP1,F) Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):100% @ 1mA
Current Transfer Ratio (Max):1200% @ 1mA
Turn On / Turn Off Time (Typ):10µs, 8µs
Rise / Fall Time (Typ):8µs, 8µs
Input Type:AC, DC
Output Type:Transistor
Voltage - Output (Max):55V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.15V
Current - DC Forward (If) (Max):60 mA
Vce Saturation (Max):400mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SMD
