HCC242TXV

HCC242TXV

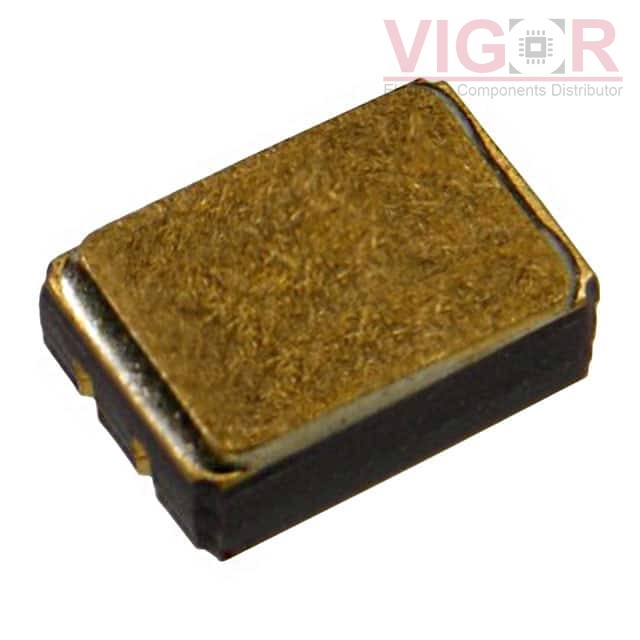

Image is for reference,
please contact us to get the real picture

Part No :

HCC242TXV

Manufacturer
TT Electronics / Optek Technology
Description
OPTOISOLATOR 1KV TRANS 4-CLCC
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
HCC242TXV PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of HCC242TXV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCC242TXV Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:1000VDC
Current Transfer Ratio (Min):100% @ 10mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):20µs, 20µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):30V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.5V (Max)
Current - DC Forward (If) (Max):40 mA
Vce Saturation (Max):300mV
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:4-SMD, No Lead
Supplier Device Package:4-CLCC (5.59x3.81)
