PC357N9TJ00F

PC357N9TJ00F

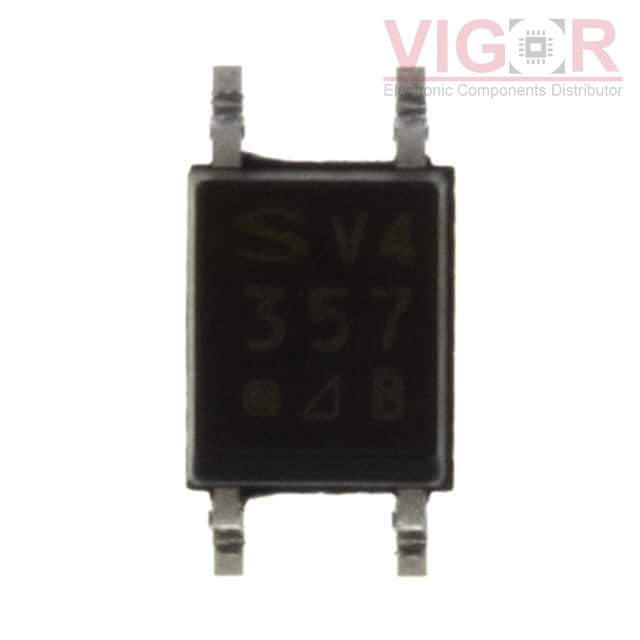

Image is for reference,
please contact us to get the real picture

Part No :

PC357N9TJ00F

Manufacturer
Sharp Microelectronics
Description
OPTOISO 3.75KV TRANSISTOR 4BESOP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
PC357N9TJ00F PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PC357N9TJ00F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC357N9TJ00F Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):130% @ 5mA
Current Transfer Ratio (Max):600% @ 5mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):4µs, 3µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):200mV
Operating Temperature:-30°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-Mini-Flat
