TLP290(E)

TLP290(E)

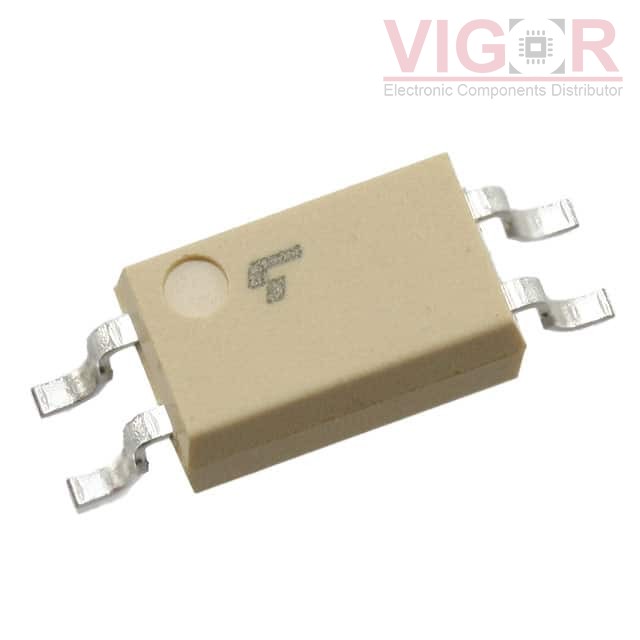

Image is for reference,
please contact us to get the real picture

Part No :

TLP290(E)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
OPTOISOLATOR 3.75KV TRANS 4-SO
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
TLP290(E) PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TLP290(E) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP290(E) Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):50% @ 5mA
Current Transfer Ratio (Max):400% @ 5mA
Turn On / Turn Off Time (Typ):7µs, 7µs
Rise / Fall Time (Typ):4µs, 7µs
Input Type:AC, DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.25V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):300mV
Operating Temperature:-55°C ~ 110°C
Mounting Type:Surface Mount
Package / Case:4-SOIC (0.179", 4.55mm Width)
Supplier Device Package:4-SO
