OCP-PCTB116/E-TR

OCP-PCTB116/E-TR

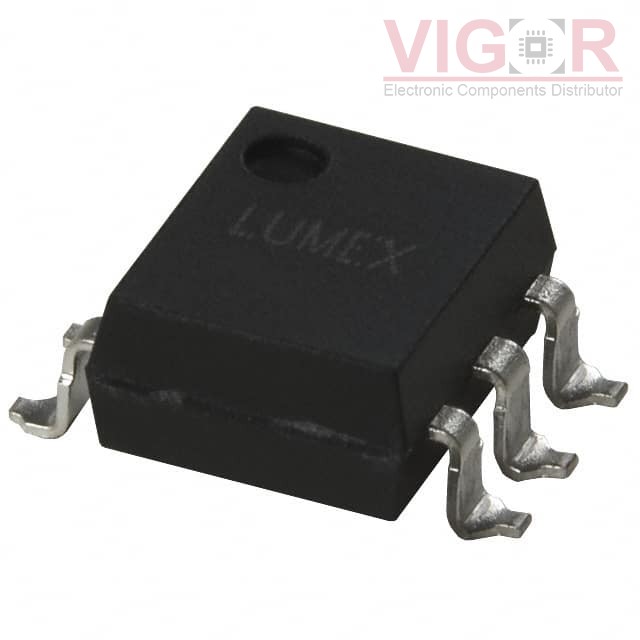

Image is for reference,
please contact us to get the real picture

Part No :

OCP-PCTB116/E-TR

Manufacturer
Lumex, Inc.
Description
OPTOISO 5KV TRANS W/BASE 6SMD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
OCP-PCTB116/E-TR PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of OCP-PCTB116/E-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

OCP-PCTB116/E-TR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):60% @ 2mA
Current Transfer Ratio (Max):600% @ 2mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):5µs, 4µs
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):60V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):300mV
Operating Temperature:-30°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:6-SMD, Gull Wing
Supplier Device Package:6-SMD
