4N23UTX

4N23UTX

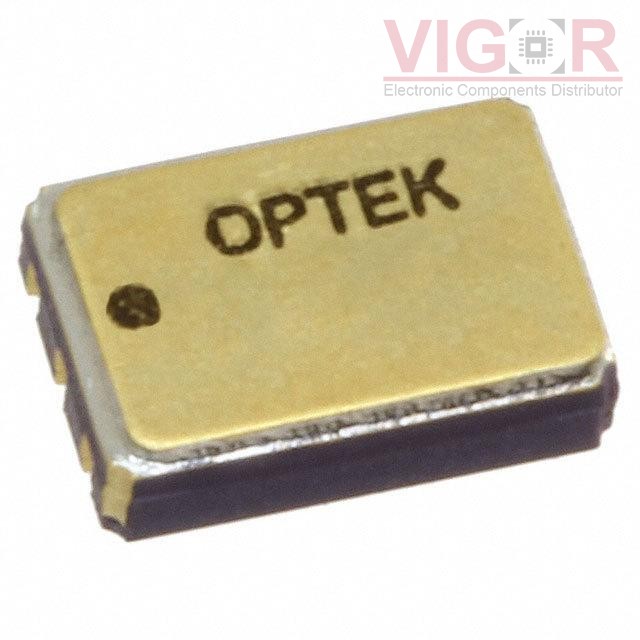

Image is for reference,
please contact us to get the real picture

Part No :

4N23UTX

Manufacturer
TT Electronics / Optek Technology
Description
OPTOISO 1KV TRANS W/BASE 6LCC
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
4N23UTX PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 4N23UTX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

4N23UTX Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:1000VDC
Current Transfer Ratio (Min):60% @ 10mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):15µs, 15µs
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):35V
Current - Output / Channel:-
Voltage - Forward (Vf) (Typ):1.3V (Max)
Current - DC Forward (If) (Max):40 mA
Vce Saturation (Max):300mV
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:6-SMD, No Lead
Supplier Device Package:6-LCC (6.22x4.32)
