3C91CTX

3C91CTX

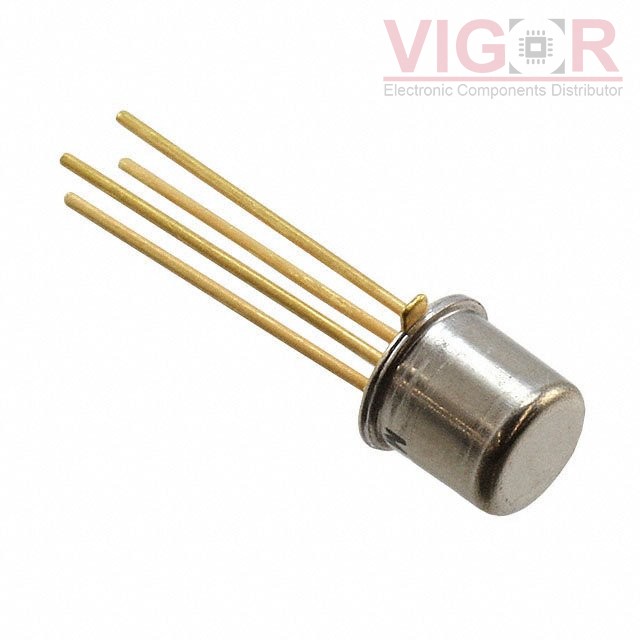

Image is for reference,
please contact us to get the real picture

Part No :

3C91CTX

Manufacturer
TT Electronics / Optek Technology
Description
OPTOISOLATOR 1KV TRANS TO72-4
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
3C91CTX PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 3C91CTX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3C91CTX Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:1000VDC
Current Transfer Ratio (Min):30% @ 10mA
Current Transfer Ratio (Max):200% @ 10mA
Turn On / Turn Off Time (Typ):9µs, 6µs (Max)
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):50V
Current - Output / Channel:30mA
Voltage - Forward (Vf) (Typ):1.2V (Max)
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):400mV
Operating Temperature:-55°C ~ 125°C
Mounting Type:Through Hole
Package / Case:TO-206AF, TO-72-4 Metal Can
Supplier Device Package:TO-72-4
