TLP371(TP1,F)

TLP371(TP1,F)

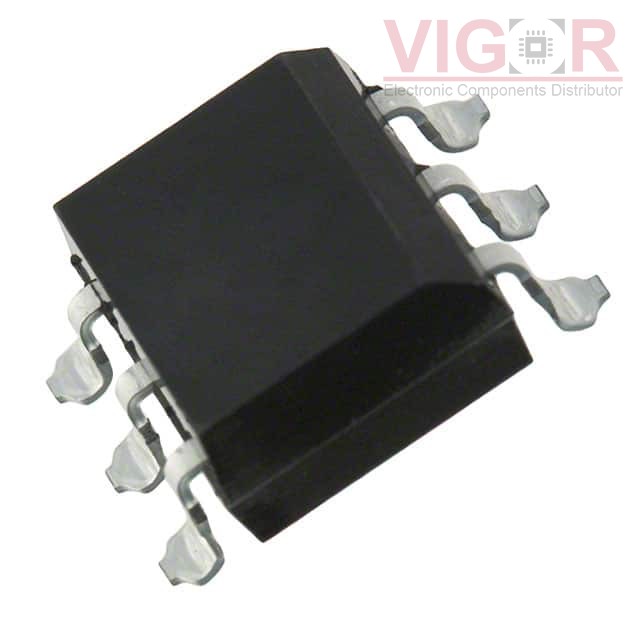

Image is for reference,
please contact us to get the real picture

Part No :

TLP371(TP1,F)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
OPTOISO 5KV DARL W/BASE 6SMD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
TLP371(TP1,F) PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TLP371(TP1,F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP371(TP1,F) Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):1000% @ 1mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):50µs, 15µs
Rise / Fall Time (Typ):40µs, 15µs
Input Type:DC
Output Type:Darlington with Base
Voltage - Output (Max):300V
Current - Output / Channel:150mA
Voltage - Forward (Vf) (Typ):1.15V
Current - DC Forward (If) (Max):60 mA
Vce Saturation (Max):1.2V
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:6-SMD, Gull Wing
Supplier Device Package:6-SMD
