HCPL-2502#500

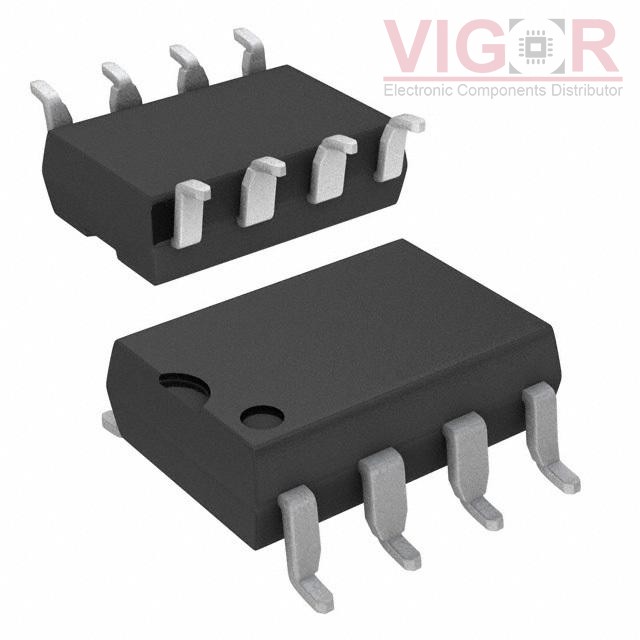

Image is for reference,
please contact us to get the real picture

Part No :: HCPL-2502#500

Manufacturer: Broadcom

Description: OPTOISO 3.75KV TRANS W/BASE 8SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 06 - Jul 10 2025

DataSheet: HCPL-2502#500 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of HCPL-2502#500 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCPL-2502#500 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Discontinued at Digi-Key
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	15% @ 16mA
Current Transfer Ratio (Max):	22% @ 16mA
Turn On / Turn Off Time (Typ):	200ns, 600ns
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor with Base
Voltage - Output (Max):	20V
Current - Output / Channel:	8mA
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	25 mA
Vce Saturation (Max):	-
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	8-SMD, Gull Wing
Supplier Device Package:	8-SMD
