PS2913-1-M-A

PS2913-1-M-A

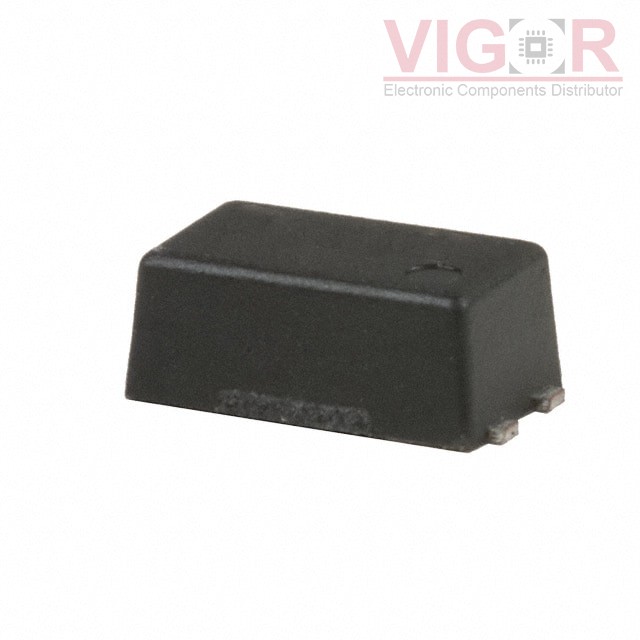

Image is for reference,
please contact us to get the real picture

Part No :

PS2913-1-M-A

Manufacturer
CEL (California Eastern Laboratories)
Description
OPTOISOLATOR 2.5KV TRANS 4SMD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 12 - Jul 16 2025
DataSheet
PS2913-1-M-A PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PS2913-1-M-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PS2913-1-M-A Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:2500Vrms
Current Transfer Ratio (Min):50% @ 1mA
Current Transfer Ratio (Max):100% @ 1mA
Turn On / Turn Off Time (Typ):80µs, 50µs
Rise / Fall Time (Typ):10µs, 10µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):120V
Current - Output / Channel:30mA
Voltage - Forward (Vf) (Typ):1.1V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):300mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Flat Leads
Supplier Device Package:4-Mini-Flat
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT HMAA2705R1V

HMAA2705R1V

OPTOISO 3.75KV TRANSISTOR 4SMD
HOT PS2933-1-F3-A

PS2933-1-F3-A

OPTOISOLATOR 2.5KV DARL 4SMD

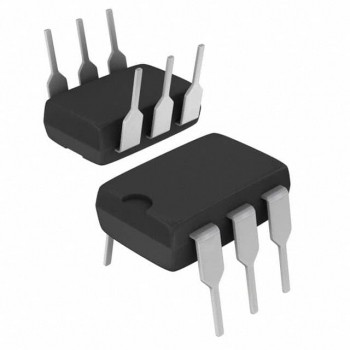

HOT 4N32-X000
