SFH636-X009

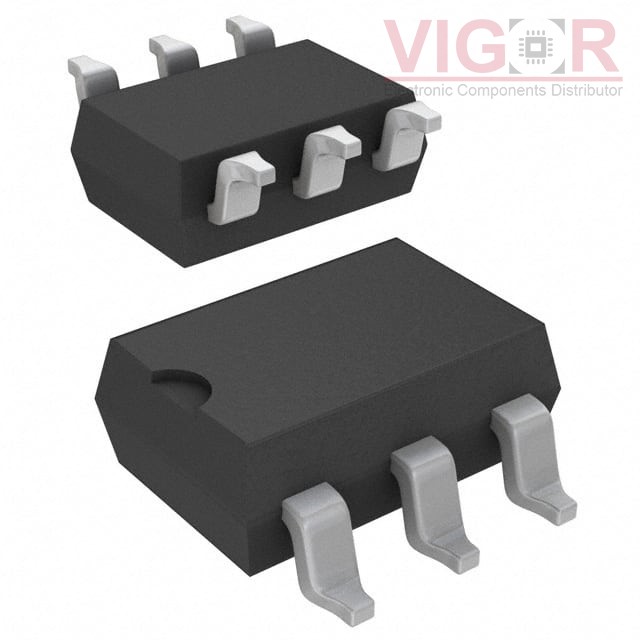

Image is for reference,
please contact us to get the real picture

Part No :: SFH636-X009

Manufacturer: Vishay / Semiconductor - Opto Division

Description: OPTOISO 4.42KV TRANS 6SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: SFH636-X009 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SFH636-X009 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SFH636-X009 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	4420Vrms
Current Transfer Ratio (Min):	19% @ 16mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	300ns, 300ns
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	20V
Current - Output / Channel:	8mA
Voltage - Forward (Vf) (Typ):	1.5V
Current - DC Forward (If) (Max):	25 mA
Vce Saturation (Max):	400mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SMD, Gull Wing
Supplier Device Package:	6-SMD
