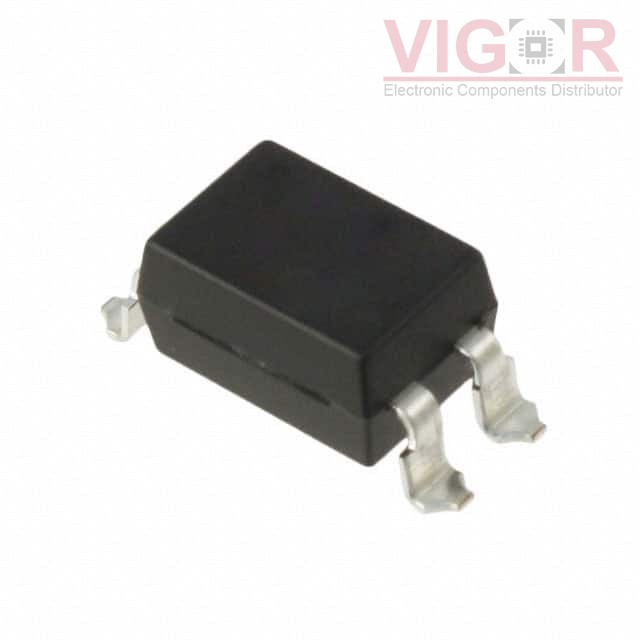

OPIA815ATRE

OPIA815ATRE

Image is for reference,
please contact us to get the real picture

Part No :

OPIA815ATRE

Manufacturer
TT Electronics / Optek Technology
Description
OPTOISOLTR 5KV DARLINGTON 4-SMD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
OPIA815ATRE PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of OPIA815ATRE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

OPIA815ATRE Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):70% @ 50µA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):80µs, 72µs
Input Type:DC
Output Type:Darlington
Voltage - Output (Max):35V
Current - Output / Channel:80mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):1V
Operating Temperature:-30°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SMD
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT HMA121DR3V

HMA121DR3V

OPTOISO 3.75KV TRANSISTOR 4SMD

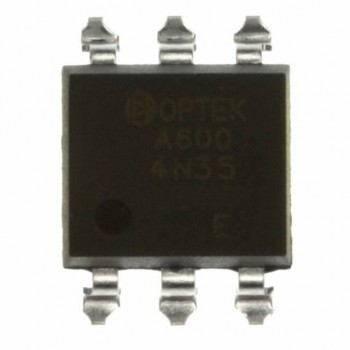

HOT OPIA4N35ATUE
