Q3023

Q3023

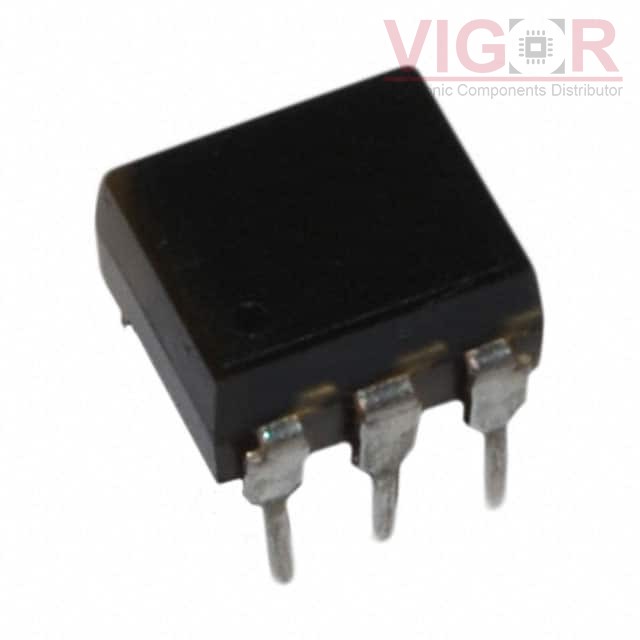

Image is for reference,
please contact us to get the real picture

Part No :

Q3023

Manufacturer
QT Brightek
Description
OPTOISOLATOR 5KV TRIAC 6DIP
Catalog
Optoisolators - Triac, SCR Output
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
Q3023 PDF
Availability
0 pieces
Unit Price
$0.67633

Current price of Q3023 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Q3023 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Output Type:Triac
Zero Crossing Circuit:No
Number of Channels:1
Voltage - Isolation:5000Vrms
Voltage - Off State:400 V
Static dV/dt (Min):100V/µs (Typ)
Current - LED Trigger (Ift) (Max):5mA
Current - On State (It (RMS)) (Max):-
Current - Hold (Ih):250µA (Typ)
Turn On Time:-
Voltage - Forward (Vf) (Typ):1.18V
Current - DC Forward (If) (Max):60 mA
Operating Temperature:-55°C ~ 100°C
Mounting Type:Through Hole
Package / Case:6-DIP (0.300", 7.62mm)
Supplier Device Package:6-DIP
Approval Agency:UR, VDE
