TLP748J(TP1,F)

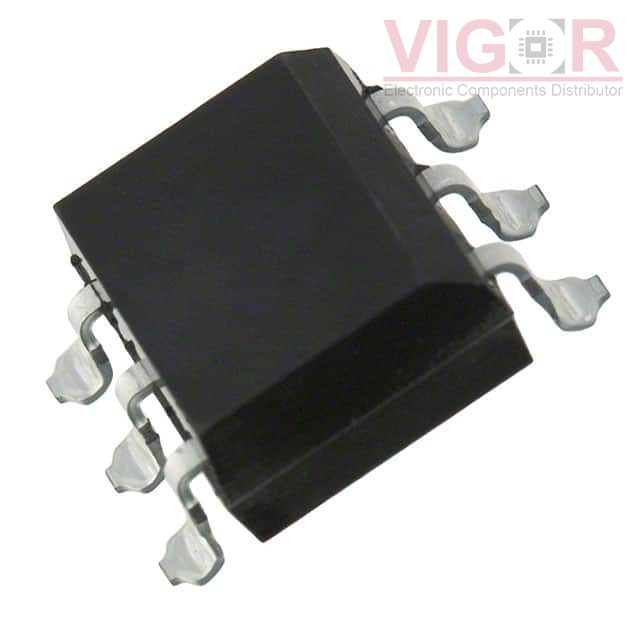

Image is for reference,
please contact us to get the real picture

Part No :: TLP748J(TP1,F)

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: OPTOISOLATOR 4KV SCR 6SMD

Catalog: Optoisolators - Triac, SCR Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: TLP748J(TP1,F) PDF

Availability: 5909 pieces

Unit Price: ~~$1.76000~~

Current price of TLP748J(TP1,F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP748J(TP1,F) Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Type:	SCR
Zero Crossing Circuit:	No
Number of Channels:	1
Voltage - Isolation:	4000Vrms
Voltage - Off State:	600 V
Static dV/dt (Min):	5V/µs
Current - LED Trigger (Ift) (Max):	10mA
Current - On State (It (RMS)) (Max):	150 mA
Current - Hold (Ih):	1mA
Turn On Time:	15µs
Voltage - Forward (Vf) (Typ):	1.15V
Current - DC Forward (If) (Max):	50 mA
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SMD, Gull Wing
Supplier Device Package:	6-SMD
Approval Agency:	BSI, SEMKO, UR
